Thermodynamics

Introduction to Thermodynamics

Thermodynamics is a fundamental branch of physics and chemistry that deals with the study of energy, heat, work, and their transformations. It explains how energy moves within a system and how it interacts with its surroundings. The word thermodynamics comes from the Greek words therme meaning heat and dynamis meaning power.

Thermodynamics plays a crucial role in understanding many natural and technological processes. From engines and refrigerators to biological metabolism and atmospheric processes, thermodynamic principles help explain how energy is transferred and transformed.

In chemistry, thermodynamics helps determine whether a chemical reaction will occur spontaneously and how much energy will be released or absorbed during the reaction. In physics and engineering, it is used to design engines, turbines, power plants, and refrigeration systems.

The field of thermodynamics developed during the 19th century through the work of scientists studying steam engines and heat engines. Their investigations led to the discovery of fundamental laws governing energy transfer.

Thermodynamics is primarily concerned with macroscopic properties of systems such as:

Temperature
Pressure
Volume
Internal energy
Enthalpy
Entropy

These quantities describe the energy state of a system and how it changes during physical or chemical processes.

1. Thermodynamic Systems

A thermodynamic system is a specific portion of the universe that is chosen for study. Everything outside the system is known as the surroundings.

For example:

A gas inside a cylinder can be considered the system.
The cylinder walls and external environment are the surroundings.

Understanding the interaction between a system and its surroundings is essential in thermodynamics.

Types of Thermodynamic Systems

Thermodynamic systems are classified based on the exchange of matter and energy.

Open System

An open system can exchange both energy and matter with its surroundings.

Examples:

Boiling water in an open pot
Human body
Rivers and oceans

Open systems are common in biological and environmental processes.

Closed System

A closed system can exchange energy but not matter with its surroundings.

Example:

Gas in a sealed container where heat can pass through the walls.

Most laboratory experiments involve closed systems.

Isolated System

An isolated system cannot exchange matter or energy with its surroundings.

Example:

An ideal thermos flask (approximate isolated system)

In reality, perfectly isolated systems do not exist, but some systems closely approximate this condition.

2. Thermodynamic Properties

Thermodynamic properties describe the state of a system.

They are divided into two main categories.

Intensive Properties

Intensive properties do not depend on the amount of substance in the system.

Examples include:

Temperature
Pressure
Density

These properties remain the same regardless of system size.

Extensive Properties

Extensive properties depend on the quantity of matter.

Examples include:

Volume
Mass
Internal energy

If the system size doubles, these properties also double.

3. State Functions and Path Functions

Thermodynamics distinguishes between state functions and path functions.

State Functions

State functions depend only on the current state of the system, not on the path taken to reach that state.

Examples include:

Internal energy
Enthalpy
Entropy
Pressure
Temperature

Path Functions

Path functions depend on the specific process used to change the system.

Examples include:

Heat
Work

These quantities vary depending on how the system moves from one state to another.

4. The Zeroth Law of Thermodynamics

The Zeroth Law establishes the concept of temperature.

It states:

If two systems are in thermal equilibrium with a third system, they are also in thermal equilibrium with each other.

This principle allows the use of thermometers to measure temperature.

Example:

If object A is in thermal equilibrium with object C, and object B is also in equilibrium with object C, then A and B must be at the same temperature.

This law forms the basis for temperature measurement.

5. The First Law of Thermodynamics

\Delta U = Q – W

Definition

The First Law of Thermodynamics is essentially the law of conservation of energy.

It states that energy cannot be created or destroyed; it can only be transferred or converted from one form to another.

Explanation

According to the first law, the change in internal energy of a system depends on:

Heat added to the system
Work done by the system

If heat is added, internal energy increases.
If work is done by the system, internal energy decreases.

Internal Energy

Internal energy is the total energy contained within a system.

It includes:

Kinetic energy of molecules
Potential energy from intermolecular interactions

Changes in internal energy occur during heating, cooling, compression, expansion, or chemical reactions.

Work in Thermodynamics

Work occurs when a force causes displacement.

In thermodynamics, work often occurs when gases expand or compress.

Example:

Gas expansion pushing a piston upward.

6. Heat and Energy Transfer

Heat is the transfer of energy between systems due to temperature differences.

There are three main mechanisms of heat transfer.

Conduction

Conduction is the transfer of heat through direct contact between particles.

Example:

A metal spoon placed in hot tea becomes warm.

Heat flows from higher temperature to lower temperature regions.

Convection

Convection occurs in fluids (liquids and gases) when heat transfer occurs through fluid motion.

Examples include:

Boiling water
Atmospheric circulation

Warm fluid rises while cooler fluid sinks, creating convection currents.

Radiation

Radiation is heat transfer through electromagnetic waves.

Unlike conduction and convection, radiation does not require a medium.

Example:

Heat from the sun reaching Earth.

7. The Second Law of Thermodynamics

The Second Law introduces the concept of entropy.

It states that the entropy of an isolated system always increases over time.

In simpler terms, natural processes tend to move toward greater disorder.

Entropy

Entropy is a measure of randomness or disorder in a system.

Examples:

Ice melting increases entropy.
Gas expansion increases entropy.

Systems tend to move toward states with higher entropy.

Spontaneous Processes

A spontaneous process occurs naturally without external intervention.

Examples include:

Heat flowing from hot to cold objects
Mixing of gases
Dissolution of salt in water

Spontaneous processes generally increase entropy.

8. The Third Law of Thermodynamics

The Third Law states that the entropy of a perfect crystal approaches zero as the temperature approaches absolute zero.

Absolute zero is the lowest possible temperature.

Absolute zero:

0 Kelvin
−273.15 °C

At this temperature, molecular motion theoretically stops.

9. Enthalpy

Enthalpy represents the heat content of a system.

It is particularly useful when studying reactions at constant pressure.

The change in enthalpy during a reaction is called enthalpy change.

Exothermic Reactions

Exothermic reactions release heat to the surroundings.

Examples:

Combustion of fuels
Respiration in living organisms

Endothermic Reactions

Endothermic reactions absorb heat from the surroundings.

Examples:

Photosynthesis
Melting of ice

10. Thermodynamic Processes

Thermodynamic processes describe how systems change from one state to another.

Isothermal Process

Temperature remains constant.

Heat transfer occurs to maintain constant temperature during expansion or compression.

Adiabatic Process

No heat exchange occurs between system and surroundings.

Energy changes occur only through work.

Isobaric Process

Pressure remains constant while volume and temperature may change.

Isochoric Process

Volume remains constant.

Heat transfer changes temperature and pressure.

11. Thermodynamic Cycles

Thermodynamic cycles occur when a system returns to its initial state after a series of processes.

Examples include:

Carnot cycle
Rankine cycle
Otto cycle

These cycles are important in heat engines and power plants.

12. Applications of Thermodynamics

Thermodynamics is essential in many scientific and engineering fields.

Power Generation

Power plants convert thermal energy into mechanical energy using thermodynamic cycles.

Refrigeration

Refrigerators and air conditioners operate based on thermodynamic principles involving heat transfer and phase changes.

Chemical Engineering

Thermodynamics helps design reactors and optimize industrial chemical processes.

Biological Systems

Living organisms rely on thermodynamic principles for metabolism and energy transfer.

Environmental Science

Thermodynamics explains climate systems, atmospheric circulation, and energy balance on Earth.

13. Importance of Thermodynamics

Thermodynamics provides the fundamental framework for understanding energy transformations in nature and technology.

It explains how energy moves between systems, how chemical reactions release or absorb heat, and how engines convert heat into mechanical work.

The laws of thermodynamics apply universally, governing processes in physics, chemistry, biology, engineering, and environmental science.

Understanding thermodynamics enables scientists and engineers to design efficient machines, improve energy systems, and develop sustainable technologies.

Conclusion

Thermodynamics is the scientific study of energy, heat, and work and the laws that govern their transformations. It provides a powerful framework for understanding how energy flows through physical and chemical systems.

The four fundamental laws of thermodynamics describe the principles of temperature equilibrium, energy conservation, entropy increase, and the behavior of matter at extremely low temperatures. These laws apply universally to all physical processes.

Key thermodynamic concepts such as internal energy, enthalpy, entropy, and thermodynamic processes help explain the behavior of systems ranging from microscopic chemical reactions to large-scale industrial machines.

Thermodynamics plays a vital role in numerous applications, including power generation, refrigeration, chemical manufacturing, biological metabolism, and environmental systems. By studying thermodynamics, scientists gain insight into the fundamental principles governing energy transformations in the universe.

Heat Transfer: Conduction, Convection, and Radiation

1. Introduction to Heat Transfer

Heat transfer is a fundamental process in physics and thermodynamics that explains how thermal energy moves from one object or region to another. Whenever there is a temperature difference between two bodies or areas, heat energy flows from the hotter region to the colder region until thermal equilibrium is reached.

Heat transfer plays a vital role in both natural processes and technological systems. It influences weather patterns, ocean currents, climate systems, biological processes, industrial manufacturing, and household appliances. For example, heat transfer occurs when water boils in a pot, when the Sun warms the Earth, when an engine converts heat into mechanical energy, and when a refrigerator removes heat from food to keep it cold.

There are three primary mechanisms through which heat transfer occurs:

Conduction
Convection
Radiation

Each of these processes operates under different physical principles and occurs in different environments. Conduction involves heat transfer through direct contact between particles. Convection involves heat transfer through the movement of fluids such as liquids or gases. Radiation involves the transfer of heat through electromagnetic waves and does not require a medium.

Understanding heat transfer is essential in many areas of science and engineering, including mechanical engineering, environmental science, architecture, electronics, and energy systems.

2. Concept of Heat Transfer

Heat transfer occurs whenever there is a difference in temperature between two systems.

According to thermodynamics:

Heat always flows from a region of higher temperature to a region of lower temperature.

This flow continues until both systems reach the same temperature, a condition known as thermal equilibrium.

The rate and efficiency of heat transfer depend on several factors such as:

Temperature difference
Material properties
Surface area
Distance between objects
Nature of the medium

Heat transfer mechanisms explain how energy moves within solids, liquids, gases, and even empty space.

3. Conduction

3.1 Definition of Conduction

Conduction is the transfer of heat through a material without the movement of the material as a whole.

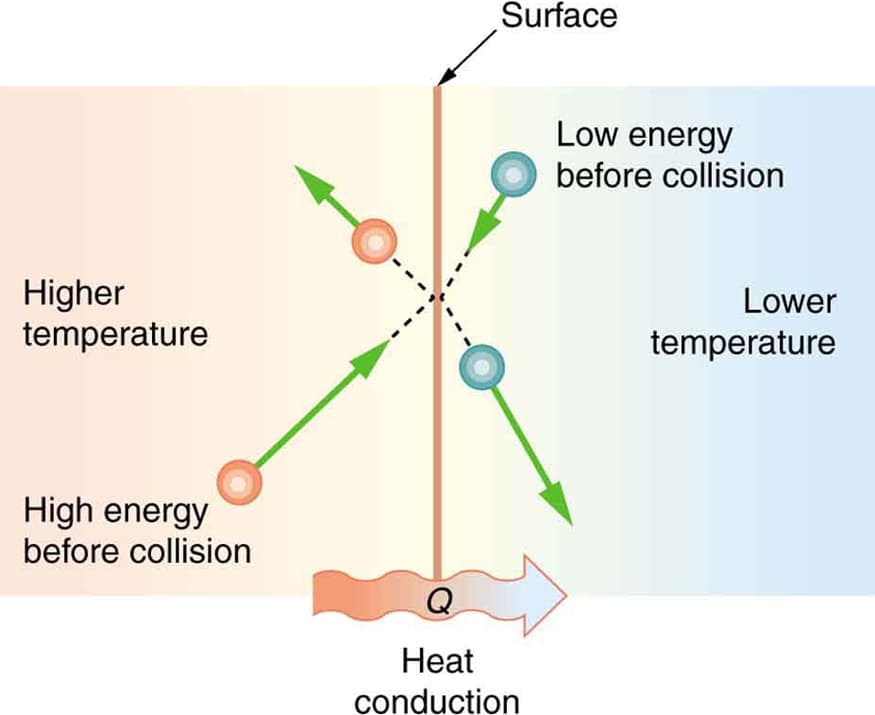

In conduction, heat energy is transferred through microscopic collisions between atoms, molecules, or electrons.

This process occurs primarily in solids, where particles are closely packed.

3.2 Mechanism of Conduction

When one part of a solid is heated:

The particles in that region gain kinetic energy.
These particles vibrate more vigorously.
They collide with neighboring particles.
Energy is transferred through the material.

Thus heat gradually spreads from the hot region to the cooler region.

In metals, conduction occurs very efficiently because free electrons carry energy quickly through the material.

3.3 Thermal Conductivity

The ability of a material to conduct heat is called thermal conductivity.

Materials with high thermal conductivity transfer heat rapidly.

Examples of good conductors include:

Copper
Aluminum
Silver
Iron

Materials with low thermal conductivity are called insulators.

Examples include:

Wood
Plastic
Rubber
Air

These materials resist the flow of heat and are used in thermal insulation.

3.4 Mathematical Description of Conduction

Heat conduction is described by Fourier’s Law.

Heat transfer rate:

Q/t = kA (ΔT / L)

Where:

Q = heat transferred
t = time
k = thermal conductivity
A = cross-sectional area
ΔT = temperature difference
L = length of material

This equation shows that heat transfer increases with larger temperature difference and larger surface area.

3.5 Examples of Conduction

Common examples include:

A metal spoon becoming hot in a cup of tea.
Iron rods heating when placed in a fire.
Cooking utensils transferring heat from stove to food.
Heat traveling through walls of buildings.

Conduction is very important in engineering applications such as heat exchangers and thermal insulation.

4. Convection

4.1 Definition of Convection

Convection is the transfer of heat through the movement of fluids such as liquids and gases.

Unlike conduction, convection involves the bulk motion of matter.

When a fluid is heated, its density decreases and it rises. Cooler fluid then moves in to replace it, creating a continuous circulation pattern called convection currents.

4.2 Mechanism of Convection

The process of convection occurs in several steps:

A fluid near a heat source becomes warmer.
Warm fluid expands and becomes less dense.
The warm fluid rises upward.
Cooler fluid moves downward to replace it.
This circulation continues, transferring heat through the fluid.

4.3 Types of Convection

Natural Convection

Natural convection occurs due to density differences caused by temperature variations.

Examples include:

Warm air rising above heaters
Ocean currents
Atmospheric circulation

Forced Convection

Forced convection occurs when an external force moves the fluid.

Examples include:

Fans cooling electronic devices
Pumps circulating coolant in engines
Air conditioning systems

Forced convection increases the rate of heat transfer.

4.4 Examples of Convection

Convection occurs in many everyday situations.

Examples include:

Boiling water in a pot
Warm air rising from heaters
Sea breezes and land breezes
Circulation of air in rooms

Convection is also responsible for large-scale phenomena such as weather systems and ocean currents.

5. Radiation

5.1 Definition of Radiation

Radiation is the transfer of heat through electromagnetic waves.

Unlike conduction and convection, radiation does not require a medium.

Heat can travel through empty space via radiation.

5.2 Mechanism of Radiation

All objects emit electromagnetic radiation due to the thermal motion of their particles.

The amount of radiation depends on:

Temperature of the object
Surface properties
Area of the object

Hotter objects emit more radiation.

5.3 Thermal Radiation

Thermal radiation includes infrared radiation emitted by objects.

Examples include:

Heat from the Sun reaching Earth
Heat felt from a fire
Warmth from a heater

Even human bodies emit infrared radiation.

5.4 Stefan–Boltzmann Law

Radiated energy depends on temperature.

The Stefan–Boltzmann law states:

E = σT⁴

Where:

E = energy emitted
σ = Stefan–Boltzmann constant
T = absolute temperature

This law shows that radiation increases rapidly with temperature.

6. Comparison of Conduction, Convection, and Radiation

These three heat transfer mechanisms differ in several ways.

Conduction occurs mainly in solids through particle collisions.

Convection occurs in liquids and gases through fluid motion.

Radiation occurs through electromagnetic waves and can occur even in vacuum.

Conduction and convection require a medium, while radiation does not.

Each method plays a role in different physical situations.

7. Heat Transfer in Everyday Life

Heat transfer affects many daily activities.

Examples include:

Cooking food on a stove
Heating rooms with radiators
Sunlight warming the Earth
Cooling systems in vehicles
Refrigeration systems

Engineers use knowledge of heat transfer to design efficient appliances and energy systems.

8. Heat Transfer in Nature

Heat transfer processes drive many natural phenomena.

Examples include:

Ocean currents distributing heat around the planet
Atmospheric circulation causing winds
Formation of clouds and storms
Solar radiation heating Earth’s surface

Without heat transfer, life on Earth would not be possible.

9. Applications of Heat Transfer

Understanding heat transfer is essential in many technological fields.

Applications include:

Power plants generating electricity
Cooling systems for computers
Thermal insulation in buildings
Aerospace engineering
Solar energy systems

Efficient heat transfer management improves energy efficiency and safety.

Conclusion

Heat transfer is a fundamental concept in physics that describes how thermal energy moves from one place to another due to temperature differences. The three primary mechanisms of heat transfer are conduction, convection, and radiation.

Conduction transfers heat through direct particle interactions in solids. Convection transfers heat through the movement of fluids such as liquids and gases. Radiation transfers heat through electromagnetic waves and can occur even in a vacuum.

These processes are essential for understanding natural phenomena, industrial processes, and everyday activities. From climate systems to cooking, from power generation to space technology, heat transfer plays a critical role in shaping the physical world.

By studying heat transfer, scientists and engineers develop technologies that improve energy efficiency, environmental sustainability, and technological innovation.

Tags:

Temperature and Heat

1. Introduction to Temperature and Heat

Temperature and heat are two closely related concepts in physics that describe the thermal state of matter and the transfer of thermal energy between objects. These concepts are fundamental to the study of thermodynamics, which examines the relationships between heat, energy, work, and temperature.

Although the terms temperature and heat are often used interchangeably in everyday language, they represent different physical quantities. Temperature is a measure of the average kinetic energy of the particles in a substance, while heat refers to the energy that is transferred from one object to another because of a temperature difference.

Understanding temperature and heat is essential for explaining many natural phenomena and technological processes. For example, weather patterns, engine operation, refrigeration systems, cooking, and even biological processes all involve heat transfer and temperature changes.

In physics, heat energy flows from a region of higher temperature to a region of lower temperature until thermal equilibrium is reached. This flow of energy can occur through various mechanisms such as conduction, convection, and radiation.

The study of temperature and heat has played an important role in the development of science and engineering. It has led to the creation of thermometers, heat engines, refrigeration systems, and many other technologies that are vital to modern life.

2. Concept of Temperature

Temperature is a physical quantity that indicates how hot or cold an object is relative to other objects. It provides a measure of the thermal condition of matter and determines the direction of heat flow between objects.

Definition

Temperature can be defined as:

Temperature is the measure of the average kinetic energy of the particles in a substance.

When the particles in a substance move faster, their kinetic energy increases, and the temperature rises. When the particles move slower, the temperature decreases.

Temperature determines the direction of heat flow. Heat always flows from an object with higher temperature to one with lower temperature until both objects reach the same temperature.

Temperature Scales

Several temperature scales are used in science and everyday life.

Celsius Scale

The Celsius scale is widely used around the world. In this scale:

Water freezes at 0°C
Water boils at 100°C

This scale is based on the properties of water under standard atmospheric pressure.

Fahrenheit Scale

The Fahrenheit scale is mainly used in the United States.

Water freezes at 32°F
Water boils at 212°F

Kelvin Scale

The Kelvin scale is the SI unit of temperature used in scientific measurements.

Absolute zero: 0 K
Water freezes: 273 K
Water boils: 373 K

Kelvin scale is important in thermodynamics because it begins at absolute zero, the point where molecular motion theoretically stops.

3. Concept of Heat

Heat is a form of energy that flows from one body to another due to a temperature difference.

Definition

Heat can be defined as:

Heat is the energy transferred between objects because of a difference in temperature.

Heat is not something contained within an object. Instead, it refers to the energy in transit from one object to another.

Unit of Heat

The SI unit of heat energy is the joule (J).

Historically, heat was also measured in calories.

1 calorie = 4.186 joules

A calorie is defined as the amount of heat required to raise the temperature of 1 gram of water by 1°C.

4. Difference Between Heat and Temperature

Although heat and temperature are related, they represent different physical concepts.

Temperature measures the thermal state of a system, while heat represents energy transfer.

Temperature depends on the average kinetic energy of particles, while heat depends on both temperature and the amount of substance.

For example, a large container of warm water may contain more heat energy than a small cup of boiling water, even though the cup has higher temperature.

Thus, temperature indicates intensity of thermal energy, while heat indicates the total energy transferred.

5. Heat Transfer

Heat can be transferred from one place to another through three main processes.

Conduction

Conduction is the transfer of heat through direct contact between particles.

In conduction:

Heat flows from hot regions to cold regions.
Energy transfer occurs through collisions between molecules.

Example:

A metal spoon placed in hot tea becomes hot because heat travels through the metal by conduction.

Metals are good conductors because their electrons transfer energy efficiently.

Convection

Convection occurs in fluids such as liquids and gases.

In convection:

Heat transfer occurs through the movement of fluid.
Warmer fluid rises while cooler fluid sinks.

Example:

When water is heated in a pot, hot water rises and cooler water sinks, forming convection currents.

Convection plays an important role in atmospheric circulation and ocean currents.

Radiation

Radiation is the transfer of heat through electromagnetic waves.

Radiation does not require a medium.

Example:

Heat from the Sun reaches Earth through radiation.

All objects emit thermal radiation depending on their temperature.

6. Thermal Expansion

When materials are heated, they usually expand. This phenomenon is called thermal expansion.

As temperature increases, particles move more vigorously and occupy more space.

Types of Thermal Expansion

Linear Expansion

Expansion in one dimension such as length.

Example: expansion of railway tracks in hot weather.

Area Expansion

Expansion in two dimensions.

Example: expansion of metal plates.

Volume Expansion

Expansion in three dimensions.

Example: expansion of liquids and gases when heated.

Thermal expansion is important in engineering design to prevent structural damage.

7. Specific Heat Capacity

Specific heat capacity describes how much heat energy is required to raise the temperature of a substance.

Definition

Specific heat capacity is the amount of heat required to raise the temperature of one unit mass of a substance by one degree Celsius.

Formula:

Q = mcΔT

Where:

Q = heat energy
m = mass
c = specific heat capacity
ΔT = change in temperature

Different substances have different specific heat capacities.

Water has a high specific heat capacity, meaning it requires a large amount of heat to change its temperature.

This property plays an important role in regulating Earth’s climate.

8. Latent Heat

When a substance changes its state, heat energy is absorbed or released without changing temperature.

This heat is called latent heat.

Latent Heat of Fusion

Heat required to change solid into liquid.

Example:

Melting of ice.

Latent Heat of Vaporization

Heat required to change liquid into gas.

Example:

Boiling water turning into steam.

Latent heat explains why temperature remains constant during phase changes.

9. Thermodynamics and Heat

Thermodynamics is the branch of physics that studies heat and energy transformations.

It is governed by several important laws.

First Law of Thermodynamics

Energy cannot be created or destroyed.

It can only change from one form to another.

Example:

Heat energy converted into mechanical work in engines.

Second Law of Thermodynamics

Heat naturally flows from hotter objects to colder objects.

This law introduces the concept of entropy.

Third Law of Thermodynamics

As temperature approaches absolute zero, the entropy of a perfect crystal approaches zero.

These laws govern the behavior of thermal systems.

10. Applications of Heat and Temperature

Temperature and heat have numerous practical applications.

Cooking

Cooking uses heat transfer to change the chemical structure of food.

Refrigeration

Refrigerators remove heat from inside compartments to keep food cold.

Power Plants

Steam engines and turbines use heat to generate electricity.

Climate and Weather

Temperature differences drive atmospheric circulation and weather patterns.

Medical Applications

Thermometers measure body temperature to diagnose illness.

11. Heat in Nature

Heat plays an important role in many natural processes.

Examples include:

Solar heating of Earth’s atmosphere
Formation of ocean currents
Melting of glaciers
Volcanic heat from Earth’s interior

The Sun is the primary source of heat energy for Earth.

Solar radiation drives climate systems and supports life on the planet.

12. Measurement of Temperature

Temperature is measured using devices called thermometers.

Different types include:

Mercury thermometers
Alcohol thermometers
Digital thermometers
Infrared thermometers

Thermometers work based on properties that change with temperature, such as expansion of liquids or electrical resistance.

13. Importance of Temperature and Heat

Temperature and heat are fundamental to understanding energy transfer in physical systems.

They help explain:

Phase changes of matter
Climate and weather patterns
Operation of engines
Biological metabolism
Industrial processes

Without understanding heat and temperature, many modern technologies would not exist.

Conclusion

Temperature and heat are fundamental concepts in physics that describe the thermal state of matter and the transfer of energy due to temperature differences. Temperature measures the average kinetic energy of particles, while heat refers to energy transferred between objects.

Heat transfer occurs through conduction, convection, and radiation, allowing energy to move between systems. Thermal expansion, specific heat capacity, and latent heat explain how materials respond to temperature changes.

The study of temperature and heat forms the foundation of thermodynamics, which governs energy transformations in nature and technology. These concepts are essential for understanding processes such as climate dynamics, industrial heating, refrigeration, power generation, and biological functions.

By studying heat and temperature, scientists and engineers have developed technologies that improve daily life and deepen our understanding of natural phenomena.

Tags:
