Introduction
Electric current is the flow of electric charge through a conductor or medium. It is one of the most fundamental concepts in electricity and electronics, forming the basis for nearly all modern electrical systems and technologies. Electric current enables the operation of devices such as lights, computers, motors, and communication systems.
In simple terms, electric current represents the movement of charged particles, usually electrons, through a material. When a potential difference (voltage) is applied across a conductor, an electric field is created within the conductor that pushes the electrons, causing them to move and produce an electric current.
Electric current is measured in the SI unit called the ampere (A), which represents the amount of charge flowing through a conductor per unit time.
Electric current is essential for understanding many phenomena and technologies, including:
- Electrical circuits
- Power generation and transmission
- Electronic devices
- Electromagnetism
- Electrical heating and lighting
The study of electric current forms a key part of electrodynamics, the branch of physics dealing with moving charges and their interactions with electric and magnetic fields.

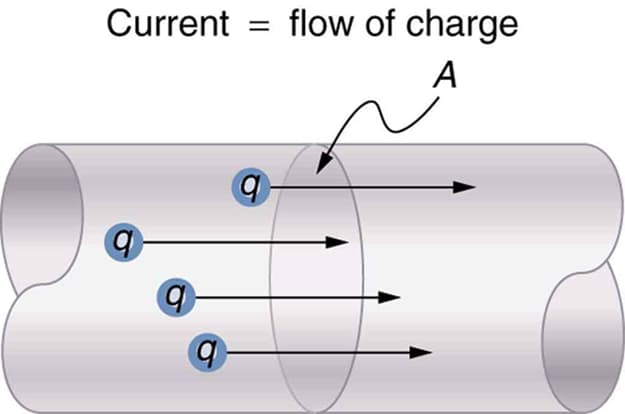

Definition of Electric Current
Electric current is defined as the rate of flow of electric charge through a conductor.
Mathematical Definition
[
I = \frac{Q}{t}
]
Where:
- (I) = electric current
- (Q) = electric charge
- (t) = time
SI Unit
The SI unit of electric current is the ampere (A).
[
1 , A = 1 , Coulomb / second
]
This means that if one coulomb of charge flows through a conductor in one second, the current is one ampere.
Electric current can flow in many different materials including metals, liquids, gases, and semiconductors.
Electric Charge Carriers
Electric current results from the movement of charge carriers.
Different materials have different types of charge carriers.
Electrons in Conductors
In metallic conductors, current is carried by free electrons that move through the metal lattice.
Example:
Copper wires used in electrical circuits.
Ions in Electrolytes
In liquids such as salt solutions, current is carried by positive and negative ions.
Example:
Electrolysis experiments.
Electrons and Holes in Semiconductors
In semiconductor materials such as silicon, current is carried by:
- Electrons
- Holes (absence of electrons)
These materials form the basis of electronic devices.
Direction of Electric Current
There are two ways to describe current direction.
Conventional Current
Conventional current flows from the positive terminal to the negative terminal of a battery.
This convention was established before electrons were discovered.
Electron Flow
Electrons actually move from the negative terminal to the positive terminal.
Thus, electron flow is opposite to conventional current direction.
Despite this difference, the conventional current direction is still widely used in circuit analysis.
Drift Velocity of Electrons
Although electrons move randomly inside conductors, when an electric field is applied they acquire a small average velocity called drift velocity.
Drift Velocity Formula
[
I = nqv_dA
]
Where:
- (n) = number of charge carriers
- (q) = charge of each carrier
- (v_d) = drift velocity
- (A) = cross-sectional area
Drift velocity is typically very small, but because many electrons move simultaneously, the current becomes significant.
Types of Electric Current
Electric current can be classified into two main types.
Direct Current (DC)
Direct current flows in one constant direction.
Characteristics:
- Constant polarity
- Steady voltage
Examples:
- Batteries
- Solar cells
- Electronic circuits
Alternating Current (AC)
Alternating current changes direction periodically.
Characteristics:
- Voltage and current vary with time
- Usually sinusoidal waveform
Examples:
- Household electricity supply
- Power transmission systems

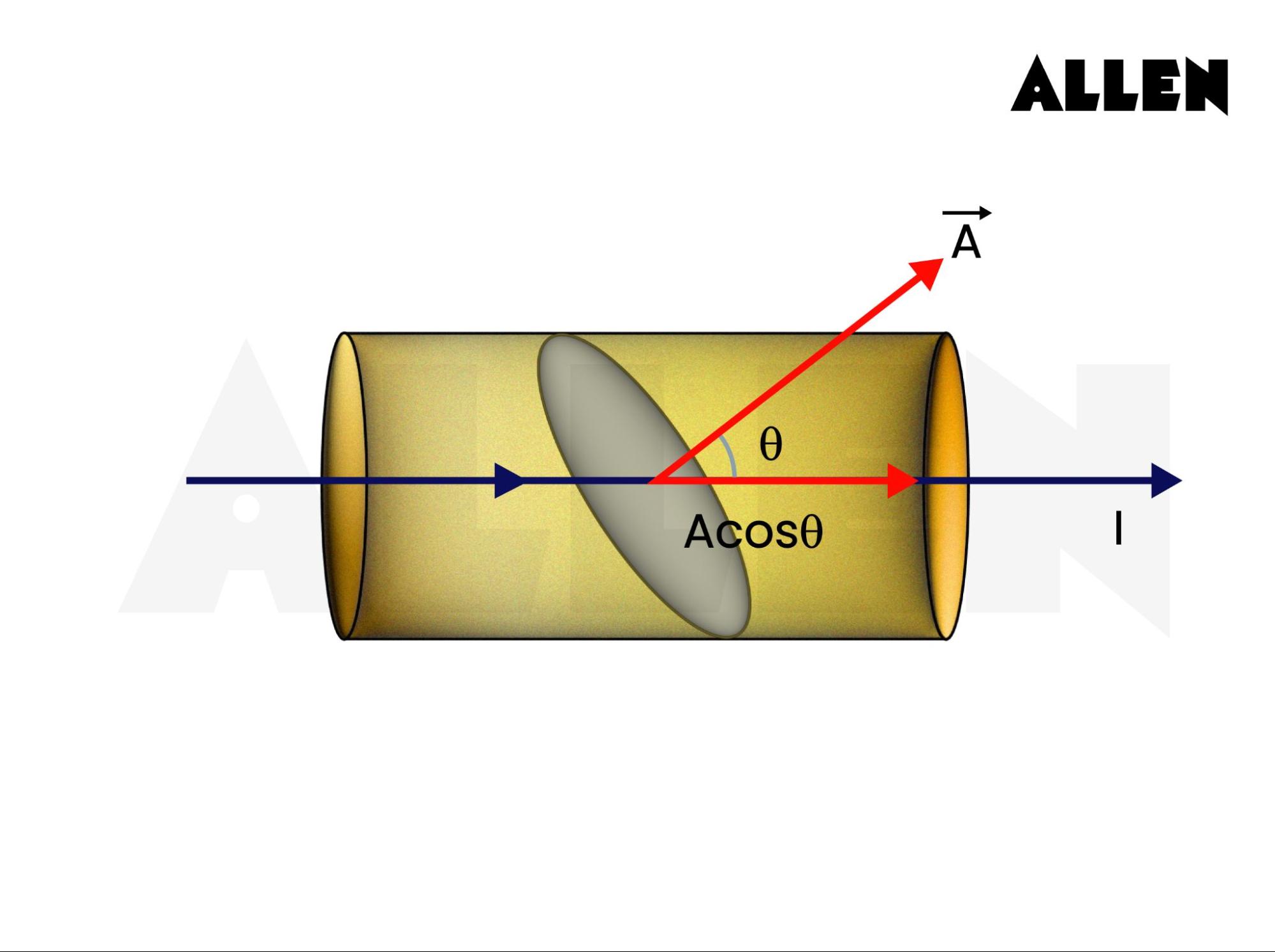

Electric Current Density
Current density describes how current flows through a conductor.
Definition
Current density is the current per unit cross-sectional area.
Formula
[
J = \frac{I}{A}
]
Where:
- (J) = current density
- (I) = current
- (A) = cross-sectional area
Unit:
[
A/m^2
]
Current density is a vector quantity that indicates the direction of charge flow.
Ohm’s Law and Electric Current
Electric current in many materials obeys Ohm’s Law.
Ohm’s Law Formula
[
V = IR
]
Where:
- (V) = voltage
- (I) = current
- (R) = resistance
This equation describes how current depends on voltage and resistance.
Electric Current in Different Materials
Electric current behaves differently depending on the material.
Conductors
Materials with many free electrons.
Examples:
- Copper
- Aluminum
They allow current to flow easily.
Insulators
Materials that resist electron movement.
Examples:
- Rubber
- Plastic
Current flow is extremely small.
Semiconductors
Materials with intermediate conductivity.
Examples:
- Silicon
- Germanium
Used in transistors, diodes, and integrated circuits.
Magnetic Effects of Electric Current
Electric current produces a magnetic field around the conductor.
This phenomenon was discovered by Hans Christian Ørsted.
The direction of the magnetic field can be determined using the right-hand rule.
Applications include:
- Electric motors
- Generators
- Electromagnets
- Transformers
Heating Effect of Electric Current
When electric current flows through a conductor, heat is produced.
This phenomenon is called the Joule heating effect.
Joule’s Law
[
H = I^2 R t
]
Where:
- (H) = heat energy produced
- (I) = current
- (R) = resistance
- (t) = time
Applications include:
- Electric heaters
- Toasters
- Electric irons
Chemical Effects of Electric Current
Electric current passing through electrolytes causes chemical reactions.
Examples:
- Electrolysis of water
- Electroplating
- Battery charging
These processes are widely used in industry.
Applications of Electric Current
Electric current powers nearly all modern technology.
Power Generation
Electric current is produced in power plants using generators.
Electric Motors
Current interacting with magnetic fields produces mechanical motion.
Electronics
Electronic circuits use electric current to process information.
Lighting
Electric current powers lamps and LEDs.
Communication Systems
Telecommunication devices rely on electric current signals.
Importance of Electric Current
Electric current is one of the most important phenomena in modern civilization.
It is essential for:
- Electrical energy distribution
- Electronic devices
- Industrial machinery
- Transportation systems
- Medical equipment
Without electric current, modern technology and infrastructure would not function.
Conclusion
Electric current is the flow of electric charge through a conductor or medium. It forms the basis of electricity and plays a crucial role in powering modern technology. The movement of charge carriers such as electrons or ions produces electric current, which can generate magnetic fields, heat, and chemical reactions.
Electric current exists in different forms such as direct current and alternating current, each serving specific purposes in electrical systems. Understanding electric current is essential for studying circuits, electronics, and electromagnetic phenomena.
From simple household appliances to complex communication networks and power systems, electric current remains one of the most important aspects of modern science and technology.
