Electric Potential

Introduction

Electric potential is a fundamental concept in electrostatics and electromagnetism that describes the electric potential energy per unit charge at a particular point in space. It represents the work required to move a unit positive test charge from a reference point (usually infinity) to a given point in an electric field.

Electric potential plays a key role in understanding how electrical energy is stored, transferred, and utilized in various physical systems. It is closely related to other important concepts such as electric field, electric potential energy, voltage, and capacitance.

Electric potential is important in many areas of science and technology, including:

Electrical circuits
Electronic devices
Capacitors
Particle accelerators
Electrochemical processes
Power transmission systems

The concept of electric potential allows scientists and engineers to analyze complex electric fields and electrical systems more easily.

Electric potential is measured in volts (V) in the International System of Units.

Electric Potential Energy

Before understanding electric potential, it is important to understand electric potential energy.

Electric potential energy is the energy possessed by a charged particle due to its position in an electric field.

When a charge is placed in an electric field, forces act on it. Moving the charge requires work, and that work is stored as potential energy.

Electric Potential Energy Formula

[
U = k \frac{q_1 q_2}{r}
]

Where:

(U) = electric potential energy
(k) = Coulomb constant
(q_1, q_2) = charges
(r) = distance between charges

Electric potential energy is similar to gravitational potential energy, where energy depends on position.

Definition of Electric Potential

Electric potential at a point is defined as the work done per unit charge to bring a test charge from infinity to that point.

Mathematical Expression

[
V = \frac{W}{q}
]

Where:

(V) = electric potential
(W) = work done
(q) = charge

Unit of Electric Potential

The SI unit of electric potential is the volt (V).

[
1 , volt = 1 , joule / coulomb
]

This means that one volt represents one joule of energy per coulomb of charge.

Electric Potential Due to a Point Charge

The electric potential created by a point charge can be derived using Coulomb’s law.

Formula

[
V = k \frac{Q}{r}
]

Where:

(V) = electric potential
(k) = Coulomb constant
(Q) = source charge
(r) = distance from the charge

Important Characteristics

Electric potential decreases as distance increases.
It is a scalar quantity, meaning it has magnitude but no direction.

Unlike electric field, which is a vector quantity, electric potential simplifies many calculations.

Electric Potential Difference (Voltage)

Electric potential difference is the difference in electric potential between two points.

It is commonly called voltage.

Formula

[
V = V_B – V_A
]

This represents the work required to move a unit charge between two points.

Example

A battery creates a potential difference between its terminals, which drives electric current through circuits.

Voltage sources include:

Batteries
Generators
Solar cells

Relationship Between Electric Field and Electric Potential

Electric potential and electric field are closely related.

The electric field is the negative gradient of electric potential.

Mathematical Relation

[
E = – \frac{dV}{dx}
]

This means that electric fields point in the direction where potential decreases most rapidly.

Key relationships:

Electric field lines are perpendicular to equipotential surfaces.
A strong electric field corresponds to a rapid change in potential.

Equipotential Surfaces

An equipotential surface is a surface where electric potential is the same everywhere.

Important properties:

No work is required to move a charge along an equipotential surface.
Electric field lines are always perpendicular to equipotential surfaces.
Equipotential surfaces around a point charge are spherical.

Examples include:

Surfaces around charged spheres
Planes between parallel plates

Electric Potential of Multiple Charges

Electric potential follows the principle of superposition.

The total potential due to multiple charges is the algebraic sum of potentials produced by each charge.

Formula

[
V_{total} = V_1 + V_2 + V_3 + …
]

Because potential is scalar, the addition is simple algebraic addition.

This property makes potential easier to calculate than electric field in many situations.

Electric Potential Energy in Electric Fields

When a charge moves in an electric field, potential energy changes.

Relationship

[
U = qV
]

Where:

(U) = electric potential energy
(q) = charge
(V) = electric potential

If a positive charge moves toward lower potential, potential energy decreases.

This energy is converted into kinetic energy.

Electric Potential in Conductors

Conductors have special properties in electrostatics.

Important characteristics:

Electric field inside a conductor is zero.
Charge resides on the surface of the conductor.
The entire conductor has constant potential.

This means conductors are equipotential bodies.

These properties are important in shielding and capacitor design.

Electric Potential and Capacitors

Capacitors store electrical energy using electric potential difference.

Capacitance Formula

[
C = \frac{Q}{V}
]

Where:

(C) = capacitance
(Q) = charge stored
(V) = potential difference

Energy Stored in Capacitor

[
U = \frac{1}{2} CV^2
]

Capacitors are widely used in electronic circuits for energy storage and filtering.

Applications of Electric Potential

Electric potential has many practical applications.

Electrical Circuits

Voltage differences drive electric current through circuits.

Particle Accelerators

High electric potentials accelerate charged particles to high speeds.

Electrochemistry

Chemical reactions in batteries involve electric potential differences.

Medical Equipment

Electric potential is used in devices such as X-ray machines and electron microscopes.

Power Transmission

Electric potential differences allow electricity to be transported across long distances.

Importance of Electric Potential in Physics

Electric potential is essential for understanding many areas of physics.

It helps explain:

Energy transfer in electric fields
Operation of electronic devices
Behavior of charged particles
Energy storage systems

Electric potential also plays a major role in Maxwell’s equations, which describe electromagnetism.

Conclusion

Electric potential is a key concept in electrostatics that describes the potential energy of a charge in an electric field. It represents the work required to move a unit positive charge from a reference point to a specific location in space.

Electric potential simplifies the study of electric fields by allowing scientists to analyze energy changes and voltage differences. It is closely related to electric field, electric potential energy, and electric circuits.

From simple batteries to complex particle accelerators and electronic devices, electric potential is essential for understanding and designing modern electrical technologies.

Electric Field

Leave a reply

Introduction

The electric field is a fundamental concept in physics that describes the influence that an electric charge exerts on other charges in the space around it. When a charged particle is placed in a region of space, it creates a field that affects other charged particles nearby. This field determines the force experienced by other charges placed within it.

The concept of the electric field helps explain how electric forces act without direct contact between objects. Instead of imagining charges pulling or pushing each other across empty space, physicists describe the interaction through an electric field that exists in the region surrounding the charge.

Electric fields play a crucial role in many areas of physics and engineering, including:

Electrostatics
Electromagnetism
Electronics
Plasma physics
Particle accelerators
Communication technologies

Electric fields are responsible for many everyday phenomena such as static electricity, lightning, electric circuits, and the operation of electronic devices.

The study of electric fields forms a key part of electromagnetic theory, which also includes magnetic fields and electromagnetic waves.

Historical Development of Electric Field Concept

Before the electric field concept was introduced, scientists believed that electric forces acted directly between charges across empty space.

The idea of electric fields was introduced in the 19th century by the British scientist Michael Faraday.

Faraday proposed that:

Electric charges produce invisible lines of influence around them.
These lines represent the electric field.

He demonstrated this concept using experiments with iron filings, which align themselves along field lines when placed near magnets or charged objects.

Later, physicist James Clerk Maxwell mathematically described electric and magnetic fields, forming the foundation of classical electromagnetism.

The concept of electric fields revolutionized physics because it allowed scientists to understand how forces are transmitted through space.

Definition of Electric Field

An electric field is defined as the force experienced per unit positive charge placed in a region of space.

Mathematical Definition

[
E = \frac{F}{q}
]

Where:

(E) = electric field strength
(F) = electric force acting on the charge
(q) = test charge

Unit of Electric Field

The SI unit of electric field is:

[
N/C \quad (Newton , per , Coulomb)
]

Another commonly used unit is:

[
V/m \quad (Volt , per , meter)
]

Both units are equivalent.

Electric Field Due to a Point Charge

A point charge produces an electric field in the surrounding space.

Using Coulomb’s Law, the electric field produced by a charge (Q) at distance (r) is:

[
E = k \frac{Q}{r^2}
]

Where:

(E) = electric field strength
(k) = Coulomb constant
(Q) = source charge
(r) = distance from the charge

Direction of Electric Field

For a positive charge, the electric field points outward.
For a negative charge, the electric field points inward.

This means that a positive test charge would move away from a positive charge and toward a negative charge.

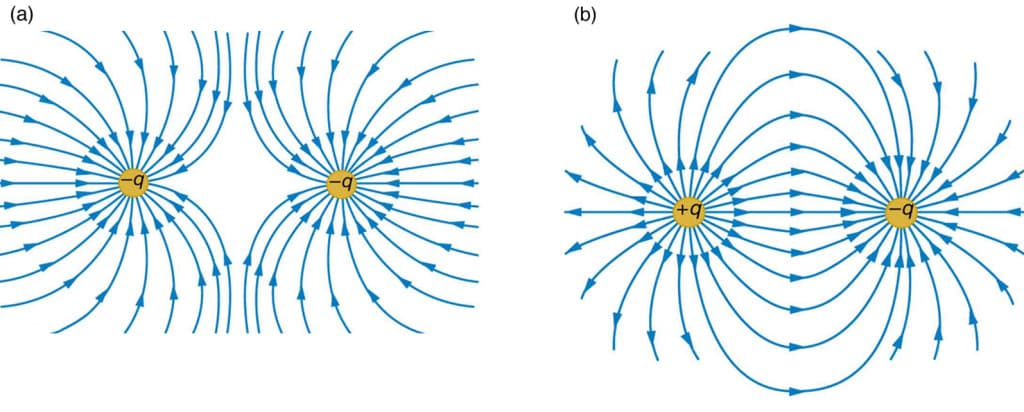

Electric Field Lines

Electric field lines are imaginary lines used to visualize electric fields.

Properties of Electric Field Lines

They start on positive charges and end on negative charges.
The density of lines represents field strength.
Field lines never intersect.
Field lines indicate the direction of force on a positive test charge.

Electric field lines provide a convenient way to represent complex electric fields.

Electric Field of Multiple Charges

When several charges are present, the total electric field is determined using the principle of superposition.

Principle of Superposition

The total electric field at any point is the vector sum of electric fields produced by each charge.

[
E_{total} = E_1 + E_2 + E_3 + …
]

This principle allows physicists to calculate electric fields for complex charge distributions.

Uniform Electric Field

A uniform electric field is one in which the magnitude and direction of the field remain constant throughout the region.

Example

The electric field between two parallel charged plates in a capacitor is nearly uniform.

Characteristics:

Field lines are parallel
Field strength is constant
Direction remains the same

Uniform fields are widely used in physics experiments and electronic devices.

Electric Dipole and Electric Field

An electric dipole consists of two equal and opposite charges separated by a small distance.

Dipole Moment

[
p = q \times d
]

Where:

(p) = dipole moment
(q) = charge
(d) = separation distance

Dipoles produce complex electric field patterns that are important in molecular physics.

Electric Flux

Electric flux measures the number of electric field lines passing through a surface.

Formula

[
\Phi = EA \cos\theta
]

Where:

(E) = electric field strength
(A) = surface area
(\theta) = angle between field and surface normal

Electric flux is important for understanding Gauss’s Law.

Gauss’s Law

Gauss’s Law relates electric flux to the charge enclosed by a surface.

Mathematical Form

[
\Phi = \frac{Q}{\varepsilon_0}
]

Where:

(Q) = enclosed charge
(\varepsilon_0) = permittivity of free space

Gauss’s Law is especially useful for calculating electric fields in symmetrical systems.

Electric Potential and Electric Field

Electric potential and electric field are closely related.

The electric field is the rate of change of electric potential.

[
E = -\frac{dV}{dx}
]

Electric field lines are always perpendicular to equipotential surfaces.

Applications of Electric Fields

Electric fields have many practical applications.

Capacitors

Electric fields store energy in capacitors used in electronic circuits.

Particle Accelerators

Electric fields accelerate charged particles in physics experiments.

Cathode Ray Tubes

Electric fields control electron beams in older television displays.

Electrostatic Precipitators

Electric fields remove pollutants from industrial emissions.

Medical Equipment

Electric fields are used in technologies like electron microscopes and radiation therapy.

Importance of Electric Fields in Modern Physics

Electric fields are essential for understanding many scientific and technological phenomena.

They are central to:

Maxwell’s equations
Electromagnetic waves
Radio communication
Electrical power systems
Semiconductor devices

Electric fields also play an important role in atomic interactions, chemical bonding, and plasma physics.

Conclusion

The electric field is a fundamental concept that explains how electric charges influence each other through space. Instead of describing forces acting directly between charges, physicists use electric fields to represent the region around a charge where other charges experience forces.

Electric fields are produced by charged particles and can be visualized using field lines. Their strength and direction depend on the magnitude of the source charge and the distance from it.

From simple electrostatic interactions to advanced technologies such as particle accelerators and communication systems, electric fields play a crucial role in both theoretical physics and practical applications. Understanding electric fields provides the foundation for studying electromagnetism and many modern technologies.

Coulomb’s Law

Leave a reply

Introduction

Coulomb’s Law is a fundamental principle of electrostatics that describes the force between two electrically charged particles. It explains how charged objects interact with each other through attractive or repulsive forces. This law forms the foundation of the study of electric fields, electrostatic interactions, and electromagnetic phenomena.

Coulomb’s Law was formulated in 1785 by the French physicist Charles-Augustin de Coulomb, who conducted precise experiments using a torsion balance to measure the force between charged objects. His experiments revealed that the electrostatic force between two charges depends on the magnitude of the charges and the distance between them.

Coulomb’s Law is extremely important in physics because it provides a quantitative description of electric forces similar to how Newton’s law of gravitation describes gravitational forces.

The law plays a crucial role in many areas such as:

Atomic physics
Electrical engineering
Electronics
Plasma physics
Material science
Electromagnetism

Understanding Coulomb’s Law allows scientists and engineers to predict how charged particles interact in various physical systems.

Historical Background

The study of electrostatic forces began centuries ago when scientists observed that certain materials such as amber could attract small objects after being rubbed.

However, a precise mathematical description of the electric force was developed in the late 18th century by Charles-Augustin de Coulomb.

Coulomb’s Experiment

Coulomb used a device called a torsion balance, which consisted of:

A thin fiber
Two small charged spheres
A scale for measuring rotation

When two charged spheres were placed near each other, the electrostatic force caused the fiber to twist. By measuring the angle of twist, Coulomb determined the magnitude of the electric force.

His experiments showed that:

The force between charges is proportional to the product of the charges.
The force decreases with the square of the distance between them.

These observations led to the formulation of Coulomb’s Law.

Statement of Coulomb’s Law

Coulomb’s Law states that:

The electrostatic force between two point charges is directly proportional to the product of their charges and inversely proportional to the square of the distance between them.

Mathematical Expression

[
F = k \frac{|q_1 q_2|}{r^2}
]

Where:

(F) = Electrostatic force between charges
(q_1) = First charge
(q_2) = Second charge
(r) = Distance between the charges
(k) = Coulomb’s constant

Coulomb’s Constant

[
k = 9 \times 10^9 , N,m^2/C^2
]

The value of the constant depends on the medium between the charges.

Nature of the Electrostatic Force

The electrostatic force described by Coulomb’s Law has specific characteristics.

Attractive Force

When charges have opposite signs, they attract each other.

Example:

Electron and proton interaction.

Repulsive Force

When charges have same signs, they repel each other.

Example:

Two electrons repel each other.

Line of Action

The force acts along the straight line joining the two charges.

Action and Reaction

The forces on the two charges are equal in magnitude and opposite in direction, according to Newton’s Third Law of Motion.

Inverse Square Law

Coulomb’s Law follows an inverse square relationship.

[
F \propto \frac{1}{r^2}
]

This means that if the distance between charges doubles, the force becomes one-fourth of its original value.

Example:

Distance	Force
r	F
2r	F/4
3r	F/9

This relationship is similar to gravitational force.

Vector Form of Coulomb’s Law

Coulomb’s Law can also be expressed in vector form.

[
\vec{F} = k \frac{q_1 q_2}{r^2} \hat{r}
]

Where:

(\vec{F}) = force vector
(\hat{r}) = unit vector along the line joining the charges

This form describes both the magnitude and direction of the force.

Principle of Superposition

In systems with multiple charges, the total force is calculated using the principle of superposition.

Definition

The total force on a charge is the vector sum of all individual forces acting on it.

Example:

If three charges act on a particle:

[
F_{total} = F_1 + F_2 + F_3
]

Each force is calculated using Coulomb’s Law.

Electric Field and Coulomb’s Law

Coulomb’s Law leads to the concept of the electric field.

Electric Field Definition

The electric field is the force experienced per unit charge.

[
E = \frac{F}{q}
]

Substituting Coulomb’s Law:

[
E = k \frac{Q}{r^2}
]

This equation describes the electric field produced by a point charge.

Electric Potential and Coulomb’s Law

Electric potential is related to Coulomb’s Law.

Electric Potential

[
V = k \frac{Q}{r}
]

Where:

(V) = electric potential
(Q) = source charge
(r) = distance from charge

Electric potential determines how much work is required to move a charge in an electric field.

Coulomb’s Law in Different Media

The electrostatic force depends on the medium between charges.

Permittivity

The constant (k) can be expressed using permittivity of free space.

[
k = \frac{1}{4\pi \varepsilon_0}
]

Where:

[
\varepsilon_0 = 8.85 \times 10^{-12} , C^2/Nm^2
]

In materials:

[
F = \frac{1}{4\pi \varepsilon} \frac{q_1 q_2}{r^2}
]

Different materials reduce electrostatic force due to dielectric effects.

Applications of Coulomb’s Law

Coulomb’s Law has many practical applications.

Atomic Structure

Electrostatic attraction between electrons and nuclei determines atomic structure.

Capacitors

Capacitors store electrical energy using electric charges on plates.

Electrostatic Precipitators

Used to remove dust and pollutants from industrial exhaust gases.

Photocopiers and Printers

Electrostatic forces help transfer toner particles to paper.

Electrostatic Painting

Charged paint particles are attracted to metal surfaces.

Comparison with Gravitational Law

Coulomb’s Law is mathematically similar to Newton’s law of gravitation.

Feature	Coulomb’s Law	Gravitational Law
Interaction	Electric charges	Masses
Force type	Attractive or repulsive	Always attractive
Strength	Very strong	Very weak
Equation form	Inverse square	Inverse square

Electrostatic forces are much stronger than gravitational forces at atomic scales.

Limitations of Coulomb’s Law

Coulomb’s Law works accurately under certain conditions.

Limitations

Valid only for point charges
Applies when charges are stationary
Not valid for moving charges (requires electromagnetic theory)
Does not include relativistic effects

For moving charges, the full theory of electromagnetism must be used.

Importance of Coulomb’s Law

Coulomb’s Law is essential because it:

Explains electrostatic interactions
Forms the basis of electric field theory
Helps understand atomic and molecular forces
Supports electrical engineering and electronics
Leads to the development of Maxwell’s equations

It is one of the fundamental laws governing electricity and magnetism.

Conclusion

Coulomb’s Law provides a mathematical description of the electrostatic force between charged particles. It states that the force between two charges depends on the product of their charges and the square of the distance separating them.

This law explains the attraction and repulsion of electric charges and forms the foundation for understanding electric fields, electric potential, and many other electromagnetic phenomena.

From atomic interactions to modern technologies such as capacitors, printers, and pollution control systems, Coulomb’s Law plays a critical role in science and engineering. Its principles continue to be essential for studying electricity, electronics, and advanced physical theories.

Electric Charge

Leave a reply

Introduction

Electric charge is one of the most fundamental properties of matter in physics. It is responsible for electric forces, electromagnetic interactions, and the behavior of charged particles in electric and magnetic fields. The study of electric charge forms the foundation of electromagnetism, which is one of the four fundamental forces of nature.

Electric charge is a property of certain subatomic particles that determines how they interact with electric and magnetic fields. Charged particles can either attract or repel each other, depending on the type of charge they possess.

There are two types of electric charge:

Positive charge
Negative charge

Objects with the same type of charge repel each other, while objects with opposite charges attract each other.

Electric charge plays a critical role in many natural phenomena and technological applications, including:

Electric circuits
Lightning
Electronic devices
Chemical bonding
Electromagnetic waves
Plasma physics

Electric charge is measured using the SI unit called the coulomb (C).

Understanding electric charge is essential for studying electricity, electronics, electromagnetism, and modern physics.

Fundamental Nature of Electric Charge

Electric charge originates from the structure of atoms and subatomic particles.

Atoms consist of three main particles:

Protons – positively charged particles
Electrons – negatively charged particles
Neutrons – neutral particles with no charge

Proton

Located in the atomic nucleus
Carries a positive charge

Electron

Moves around the nucleus in orbitals
Carries a negative charge

Neutron

Located in the nucleus
Has no electric charge

Normally, atoms contain equal numbers of protons and electrons, making them electrically neutral.

However, when electrons are gained or lost, atoms become charged particles called ions.

Types of Electric Charge

Electric charge exists in two fundamental forms.

Positive Charge

Positive charge is carried by protons.

Objects become positively charged when they lose electrons.

Example:

A glass rod rubbed with silk becomes positively charged.

Negative Charge

Negative charge is carried by electrons.

Objects become negatively charged when they gain electrons.

Example:

A plastic rod rubbed with wool becomes negatively charged.

Interaction of Charges

The behavior of electric charges follows two simple rules:

Like charges repel
Opposite charges attract

These interactions occur due to the electric force between charged particles.

Properties of Electric Charge

Electric charge has several important properties.

1. Conservation of Charge

The law of conservation of charge states that:

Electric charge cannot be created or destroyed; it can only be transferred from one object to another.

Example:

During friction, electrons move from one material to another.

Total charge remains constant.

2. Quantization of Charge

Electric charge exists in discrete units.

The smallest unit of charge is the charge of an electron:

[
e = 1.602 \times 10^{-19} C
]

Any charge is an integer multiple of this fundamental charge.

[
Q = ne
]

Where:

(n) = integer
(e) = elementary charge

3. Additivity of Charge

Electric charges add algebraically.

Example:

If two charges combine:

[
+5C + (-3C) = +2C
]

The resulting charge is the algebraic sum.

Methods of Charging

Objects can become charged through several processes.

Charging by Friction

When two materials are rubbed together, electrons transfer between them.

Examples:

Rubbing a balloon on hair
Walking on carpet and touching metal

Charging by Conduction

Charge transfer occurs through direct contact between objects.

Example:

A charged metal rod touching a neutral sphere transfers electrons.

Charging by Induction

Charging without direct contact.

A charged object placed near a conductor causes charge redistribution.

Example:

Electroscope experiments.

Coulomb’s Law

Coulomb’s Law describes the force between electric charges.

It states:

The force between two charges is directly proportional to the product of their charges and inversely proportional to the square of the distance between them.

Mathematical Expression

[
F = k \frac{q_1 q_2}{r^2}
]

Where:

(F) = electric force
(q_1) and (q_2) = charges
(r) = distance between charges
(k) = Coulomb constant

[
k = 9 \times 10^9 , Nm^2/C^2
]

Characteristics of Electric Force

Acts along the line joining the charges
Attractive or repulsive depending on charge types
Very strong compared with gravitational force

Electric Field

The electric field describes the region around a charge where other charges experience force.

Definition

Electric field is defined as force per unit charge.

[
E = \frac{F}{q}
]

Unit:

[
N/C
]

Electric Field Lines

Electric field lines represent field direction.

Rules:

Start from positive charges
End on negative charges
Never intersect

Density of lines indicates field strength.

Electric Potential and Potential Difference

Electric potential represents the energy per unit charge.

Formula

[
V = \frac{W}{q}
]

Where:

(V) = electric potential
(W) = work done
(q) = charge

Unit:

Volt (V)

Potential difference between two points is called voltage.

Electric Charge in Conductors and Insulators

Materials respond differently to electric charge.

Conductors

Conductors allow electrons to move freely.

Examples:

Copper
Aluminum
Silver

Insulators

Insulators restrict electron movement.

Examples:

Rubber
Plastic
Glass

Semiconductors

Materials with intermediate conductivity.

Examples:

Silicon
Germanium

Used in electronic devices.

Electric Charge and Current

Electric current is the flow of electric charge.

Formula

[
I = \frac{Q}{t}
]

Where:

(I) = current
(Q) = charge
(t) = time

Unit:

Ampere (A)

Electric current powers electrical devices.

Electric Dipole

An electric dipole consists of two equal and opposite charges separated by a small distance.

Dipole Moment

[
p = q \times d
]

Where:

(q) = charge
(d) = separation distance

Dipoles play important roles in molecular physics and chemistry.

Applications of Electric Charge

Electric charge is essential for many technologies.

Electronics

Electric circuits operate using charge flow.

Lightning

Lightning occurs due to massive electrostatic discharge between clouds and Earth.

Electrostatic Precipitators

Used to remove pollution particles from industrial gases.

Photocopiers and Laser Printers

Use electrostatic charge to transfer toner onto paper.

Capacitive Touchscreens

Use changes in electric charge to detect finger contact.

Importance of Electric Charge in Modern Science

Electric charge is central to:

Electromagnetism
Quantum physics
Atomic physics
Particle physics

It explains phenomena such as:

Electric circuits
Magnetic fields
Electromagnetic waves
Chemical bonding
Plasma behavior

Electric charge also plays a crucial role in modern technologies including:

Computers
Smartphones
Power generation systems
Communication networks

Conclusion

Electric charge is a fundamental property of matter that governs electric and electromagnetic interactions. It exists in two forms—positive and negative—and determines how particles interact through forces described by Coulomb’s law.

The study of electric charge provides the foundation for understanding electric fields, electric potential, electric current, and electromagnetic phenomena. From atomic structure to advanced technologies such as electronics, telecommunications, and energy systems, electric charge plays a crucial role in modern science and engineering.

Understanding electric charge allows scientists and engineers to design electrical systems, study atomic interactions, and develop technologies that power the modern world.

Introduction

Electric Potential Energy

Electric Potential Energy Formula

Definition of Electric Potential

Mathematical Expression

Unit of Electric Potential

Electric Potential Due to a Point Charge

Formula

Important Characteristics

Electric Potential Difference (Voltage)

Formula

Example

Relationship Between Electric Field and Electric Potential

Mathematical Relation

Equipotential Surfaces

Electric Potential of Multiple Charges

Formula

Electric Potential Energy in Electric Fields

Relationship

Electric Potential in Conductors

Electric Potential and Capacitors

Capacitance Formula

Energy Stored in Capacitor

Applications of Electric Potential

Electrical Circuits

Particle Accelerators

Electrochemistry

Medical Equipment

Power Transmission

Importance of Electric Potential in Physics

Conclusion

Tags

Introduction

Historical Development of Electric Field Concept

Definition of Electric Field

Mathematical Definition

Unit of Electric Field

Electric Field Due to a Point Charge

Direction of Electric Field

Electric Field Lines

Properties of Electric Field Lines

Electric Field of Multiple Charges

Principle of Superposition

Uniform Electric Field

Example

Electric Dipole and Electric Field

Dipole Moment

Electric Flux

Formula

Gauss’s Law

Mathematical Form

Electric Potential and Electric Field

Applications of Electric Fields

Capacitors

Particle Accelerators

Cathode Ray Tubes

Electrostatic Precipitators

Medical Equipment

Importance of Electric Fields in Modern Physics

Conclusion

Tags

Introduction

Historical Background

Coulomb’s Experiment

Statement of Coulomb’s Law

Mathematical Expression

Coulomb’s Constant

Nature of the Electrostatic Force

Attractive Force

Repulsive Force

Line of Action

Action and Reaction

Inverse Square Law

Vector Form of Coulomb’s Law

Principle of Superposition

Definition

Electric Field and Coulomb’s Law

Electric Field Definition

Electric Potential and Coulomb’s Law

Electric Potential
