🪨 Rocks & Rock Cycle


1. Introduction


Rocks are the fundamental building blocks of the Earth’s crust. Every landscape—mountains, valleys, plains, and ocean floors—is composed of rocks and minerals. The study of rocks provides crucial insights into the Earth’s history, structure, and dynamic processes.

The rock cycle describes the continuous transformation of rocks from one type to another over geological time. It highlights how Earth is constantly changing through processes like melting, cooling, weathering, erosion, pressure, and heat.


🌍 2. What are Rocks?


2.1 Definition

A rock is a naturally occurring solid aggregate of minerals or mineraloids.


2.2 Characteristics of Rocks

  • Made up of one or more minerals
  • Vary in color, texture, and hardness
  • Found everywhere on Earth

2.3 Minerals vs Rocks

  • Minerals: Pure substances (e.g., quartz, feldspar)
  • Rocks: Combination of minerals

🧱 3. Types of Rocks

Rocks are classified into three major types:

  1. Igneous Rocks
  2. Sedimentary Rocks
  3. Metamorphic Rocks

🔥 4. Igneous Rocks


4.1 Formation


Igneous rocks form from the cooling and solidification of molten magma or lava.


4.2 Types of Igneous Rocks


a) Intrusive (Plutonic) Rocks

  • Formed below Earth’s surface
  • Slow cooling → large crystals
  • Example: Granite

b) Extrusive (Volcanic) Rocks

  • Formed on the surface
  • Rapid cooling → small crystals
  • Example: Basalt

4.3 Characteristics

  • Hard and dense
  • No layers
  • Crystalline texture

4.4 Importance

  • Source of minerals
  • Used in construction

🌊 5. Sedimentary Rocks


5.1 Formation


Sedimentary rocks form from deposition, compaction, and cementation of sediments.


5.2 Types of Sedimentary Rocks


a) Clastic Rocks

  • Formed from fragments
  • Example: Sandstone

b) Chemical Rocks

  • Formed from precipitation
  • Example: Limestone

c) Organic Rocks

  • Formed from plant/animal remains
  • Example: Coal

5.3 Characteristics

  • Layered structure (strata)
  • May contain fossils
  • Softer than igneous rocks

5.4 Importance

  • Source of fossil fuels
  • Records Earth’s history

🔥 6. Metamorphic Rocks


6.1 Formation


Metamorphic rocks form when existing rocks are transformed by heat and pressure.


6.2 Types of Metamorphism


a) Contact Metamorphism

  • Caused by heat

b) Regional Metamorphism

  • Caused by pressure and heat

6.3 Examples

  • Limestone → Marble
  • Shale → Slate

6.4 Characteristics

  • Hard and compact
  • Often show layering (foliation)

6.5 Importance

  • Valuable building materials
  • Decorative stones

🔄 7. The Rock Cycle


7.1 Concept of Rock Cycle


The rock cycle is a continuous process where rocks change from one type to another.


7.2 Processes in Rock Cycle


a) Weathering

  • Breakdown of rocks into smaller pieces

b) Erosion and Transportation

  • Movement of sediments by water, wind, ice

c) Deposition

  • Settling of sediments

d) Compaction and Cementation

  • Formation of sedimentary rocks

e) Heat and Pressure

  • Formation of metamorphic rocks

f) Melting and Cooling

  • Formation of igneous rocks

7.3 Rock Cycle Pathways

  • No fixed starting point
  • Any rock can transform into another

🌍 8. Importance of Rocks


8.1 Economic Importance

  • Source of minerals
  • Used in construction
  • Energy resources (coal, petroleum)

8.2 Environmental Importance

  • Soil formation
  • Landscape development

8.3 Scientific Importance

  • Study of Earth’s history
  • Fossil records

🌱 9. Rock Cycle and Earth Systems


The rock cycle connects with:

  • Atmosphere
  • Hydrosphere
  • Biosphere

⚖️ 10. Comparison of Rock Types

FeatureIgneousSedimentaryMetamorphic
FormationCooling magmaDepositionHeat & pressure
StructureNon-layeredLayeredFoliated
FossilsRareCommonRare

🧠 11. Conclusion

Rocks and the rock cycle illustrate the dynamic nature of the Earth. Through continuous processes of formation, transformation, and destruction, rocks evolve over millions of years, shaping the Earth’s surface and supporting life.

Understanding rocks is essential for studying geology, geography, environmental science, and natural resource management. The rock cycle reminds us that Earth is not static but constantly changing through interconnected natural processes.


🏷️ Tags

🌍 Structure of the Earth (Crust, Mantle, Core)


1. Introduction


The Earth is not a uniform solid sphere—it is a layered planet with distinct physical and chemical properties at different depths. Understanding the structure of the Earth is fundamental to geography, geology, and environmental science because it explains phenomena such as earthquakes, volcanoes, mountain formation, plate tectonics, and the magnetic field.

Scientists have divided the Earth into three major layers:

  • Crust (outermost layer)
  • Mantle (middle layer)
  • Core (innermost layer)

These layers differ in composition, thickness, temperature, density, and physical state.


🌐 2. Basis of Classification of Earth’s Interior


2.1 Chemical (Compositional) Classification


Based on chemical composition, Earth is divided into:

  • Crust – rich in silica and aluminum (SIAL)
  • Mantle – rich in silica and magnesium (SIMA)
  • Core – composed mainly of iron and nickel (NIFE)

2.2 Physical (Mechanical) Classification


Based on physical properties:

  • Lithosphere (rigid outer layer)
  • Asthenosphere (semi-fluid)
  • Mesosphere (lower mantle)
  • Outer core (liquid)
  • Inner core (solid)

🧱 3. The Crust


3.1 Overview of the Crust


The crust is the outermost and thinnest layer of the Earth.

  • Thickness: 5–70 km
  • Represents less than 1% of Earth’s volume
  • Supports all life

3.2 Types of Crust


a) Continental Crust

  • Thickness: 30–70 km
  • Composition: Granite (SIAL)
  • Older and less dense

b) Oceanic Crust

  • Thickness: 5–10 km
  • Composition: Basalt (SIMA)
  • Younger and denser

3.3 Composition of the Crust

  • Oxygen (~46%)
  • Silicon (~28%)
  • Aluminum, Iron, Calcium, Sodium, Potassium

3.4 Features of the Crust

  • Divided into tectonic plates
  • Site of:
    • Mountains
    • Rivers
    • Volcanoes
    • Human activities

3.5 Importance of the Crust

  • Supports ecosystems
  • Source of minerals and resources
  • Basis for agriculture and habitation

🔥 4. The Mantle


4.1 Overview of the Mantle


The mantle lies beneath the crust and is the thickest layer.

  • Thickness: ~2,900 km
  • Makes up about 84% of Earth’s volume

4.2 Subdivisions of the Mantle


a) Upper Mantle

  • Includes asthenosphere
  • Semi-fluid and plastic

b) Lower Mantle

  • More rigid due to pressure
  • Extends to core

4.3 Composition of the Mantle

  • Silicate minerals rich in:
    • Magnesium
    • Iron

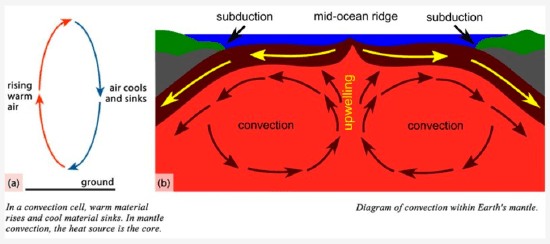

4.4 Mantle Convection


Mantle convection is the movement of material due to heat:

  • Hot material rises
  • Cool material sinks

Effects:

  • Drives plate tectonics
  • Causes earthquakes and volcanoes

4.5 Importance of the Mantle

  • Responsible for continental drift
  • Source of magma
  • Influences Earth’s surface features

🌋 5. The Core

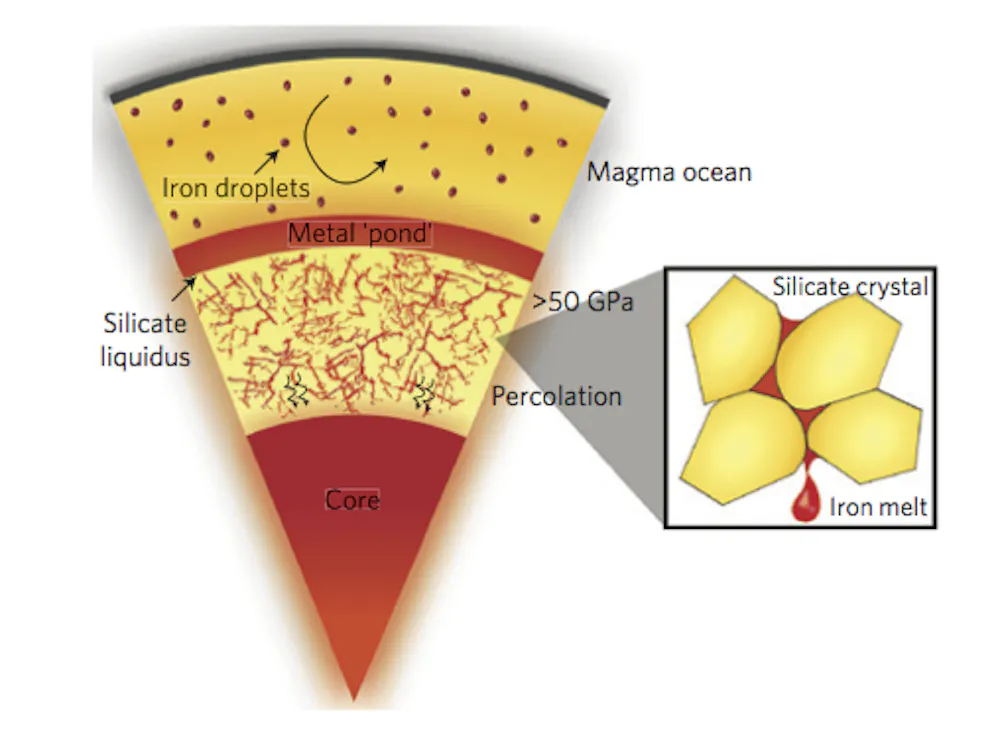

5.1 Overview of the Core


The core is the innermost layer of the Earth.

  • Radius: ~3,500 km
  • Extremely hot and dense

5.2 Subdivisions of the Core


a) Outer Core

  • Liquid
  • Composed of molten iron and nickel

b) Inner Core

  • Solid
  • Extremely high pressure

5.3 Temperature and Pressure

  • Temperature: up to 6000°C
  • Pressure: extremely high

5.4 Earth’s Magnetic Field


The movement of molten metals in the outer core generates:

  • Magnetic field
  • Protects Earth from solar radiation

5.5 Importance of the Core

  • Maintains magnetic field
  • Influences tectonic activity
  • Regulates internal heat

🌐 6. Boundaries Between Layers


6.1 Mohorovičić Discontinuity (Moho)

  • Between crust and mantle

6.2 Gutenberg Discontinuity

  • Between mantle and core

6.3 Lehmann Discontinuity

  • Between outer and inner core

🌌 7. Evidence for Earth’s Interior


7.1 Seismic Waves

  • P-waves travel through solids and liquids
  • S-waves travel only through solids

This helps identify:

  • Liquid outer core
  • Solid inner core

7.2 Other Evidence

  • Volcanic eruptions
  • Meteorite composition
  • Gravity measurements

🌱 8. Importance of Earth’s Structure


Understanding Earth’s structure helps in:

  • Predicting earthquakes
  • Exploring minerals and resources
  • Understanding climate and geology
  • Developing geothermal energy

⚖️ 9. Comparison of Layers

FeatureCrustMantleCore
Thickness5–70 km~2900 km~3500 km
StateSolidSemi-solidLiquid + Solid
CompositionSilica, AluminumMagnesium, IronIron, Nickel
ImportanceLife supportPlate movementMagnetic field

🧠 10. Conclusion

The Earth’s internal structure is a fascinating and complex system that governs the planet’s behavior. The crust provides the surface for life, the mantle drives dynamic geological processes, and the core powers the magnetic field that protects the Earth.

Together, these layers form an interconnected system that shapes everything from continents and oceans to climate and natural disasters. Understanding them is essential for grasping how the Earth functions as a living, evolving planet.
